Creating new unseen-awg weather generators

The provided datasets described in Data download and preparation can be used to create new unseen-awg weather generators. Apart from the reforecast-based weather generators that are our main focus, it is also possible to create weather generators based on the ERA5 reanalysis.

Using Snakemake to configure weather generators

Workflows for creating weather generators from raw reforecast data (or ERA5 data) are specified in the workflow/ directory. Using the provided data (Data download and preparation), it is possible to avoid using raw data and to skip the first preprocessing steps in which data is regridded, aggregated to a daily scale and unified.

Using the Snakemake workflow manager, creating a weather generator is as easy as:

conda activate unseen-awg  # activate conda environment
cd <project base directory>  # navigate to unseen-awg base directory
snakemake  --dry-run --cores 1 --configfile configs/weather_generators/reforecasts.yaml

This loads the configuration file configs/weather_generators/reforecasts.yaml that specifies the weather generator’s parameters and produces:

a weather generator instance
a small artificial weather dataset generated with the instance
a tuning run to find ideal values for some of unseen-awg’s parameters
and if necessary, it also generates a post-processed dataset of impact-relevant variables (e.g., including bias correction).

Adding the --dry-run flag allows testing the command without actually producing output, while --cores 1 indicates that a single core should be used (which is justified here, given it’s a dry run). If other outputs are desired, one can vary the configuration file or adjust the all rule defined in workflow/Snakefile.

Configuration files

We collected configurations for different weather generator setups in configs/weather_generators/. In our study, we use:

configs/weather_generators/reforecasts.yaml
configs/weather_generators/reforecasts_no_bias_correction.yaml
configs/weather_generators/era5.yaml

These .yaml files specify parameter values for all necessary preprocessing steps, some of which are described in more detail in Preprocessing details and motivation.

Parameters for the rules that define how to preprocess raw data cannot be changed when working with the provided preprocessed datasets (Data download and preparation):

preprocess_era5_single
preprocess_circulation_era5
preprocess_impact_variables_era5
preprocess_circulation_reforecasts
preprocess_impact_variables_reforecasts

If the downloaded data is stored using the correct paths (described in Data download and preparation), Snakemake will recognize it as the output of preprocessing rules and skip the early steps of the pipeline.

A note on resource demands

The Snakemake workflow is computationally expensive, especially if the large reforecast dataset is used. While we tried to keep requirements manageable, creating the full unseen-awg weather generator will most likely only be possible on HPC systems, given the demands for disk space, memory and compute. Running smaller test cases (e.g., ERA5-based unseen-awg weather generators) should also be possible on personal devices.

Specifying resources (memory, CPU cores, runtime, etc.) on a per-rule basis is possible, and Snakemake also allows creating system-specific profiles. The resources section of each Snakemake rule defined in workflow/rules will likely have to be adapted to the system the workflow is executed with. We used the snakemake-executor-plugin-slurm, which allows Snakemake to execute rules as jobs on a Slurm cluster and created a profile that is adapted to the requirements of our system (not included).

Visualizing the Snakemake workflow

The command

snakemake --configfile configs/weather_generators/reforecasts.yaml --rulegraph | dot -Tpng > rulegraph.png

can be used to create a helpful visualization of the rules being executed for the given configuration file (in this case configs/weather_generators/reforecasts.yaml) and the current state of the Snakefile.

The resulting rule graph shows how Snakemake produces an unseen-awg instance, generates a test simulation with it, performs a tuning run for some of its parameters, and prepares a bias-corrected dataset of impact-relevant variables:

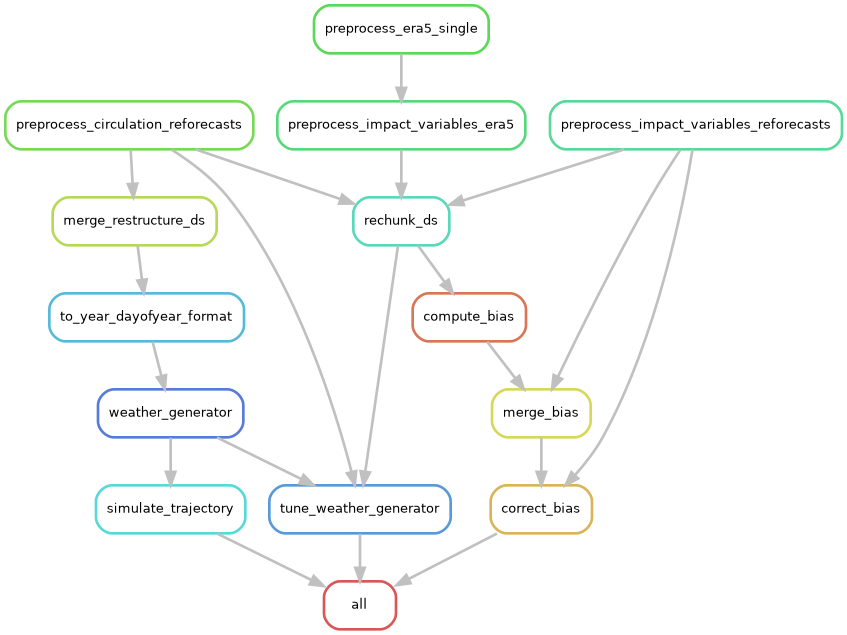

Rulegraph of the Snakemake workflow for reforecasts.yaml

The rulegraph includes the “raw-data preprocessing rules” that will not be executed if the archived data is used properly. Without bias correction and with a smaller set of targeted outputs, the corresponding graph is much simpler.

Preprocessing details and motivation

Two main lines of work are being executed in the Snakemake pipeline:

if necessary, impact-relevant variables are bias corrected. To do so, biases are computed, merged, and a Zarr store with corrected data is produced.
the atmospheric circulation variables are brought into a shape that allows parallelizing similarity computations efficiently.

rechunk_ds is a helper rule that rechunks a Zarr store. For some operations (e.g., computing biases), it is far more efficient to have the entire temporal extent in a single chunk and instead split along a spatial dimension, while for others (e.g., computing similarities) it is more efficient to have the full spatial extent in the same chunk but to split along the time dimension. By default, the archived datasets use the latter chunking option.

Below, we explain the preprocessing steps necessary for computing similarities efficiently in more detail.

From initiazlization time and lead time to valid time and sample

After the initial preprocessing steps, the atmospheric circulation dataset has temporal dimensions lead_time and init_time, i.e., forecast lead time and initialization time:

ds_combined = xr.open_zarr(path_circulation_ds)
ds_combined.dims

FrozenMappingWarningOnValuesAccess({'ensemble_member': 11, 'init_time': 2560, 'lead_time': 46, 'latitude': 18, 'longitude': 49})

The data is spaced unevenly along the init_time dimension in intervals of three, four, or less days, because ECMWF ran reforecasts twice weekly in the IFS configuration we downloaded data for.

We want to compute similarities between atmospheric states with similar dates, and in this case we’re interested in the valid time, i.e., the actual time the forecast making predictions for. It can be computed using init_time + lead_time.

Efficiently parallelizing the similarity computations therefore would require having valid_time as a dimension.

If we would naively use valid_time and lead_time as coordinates, this would lead to a strongly inflated dataset with a lot of missing data:

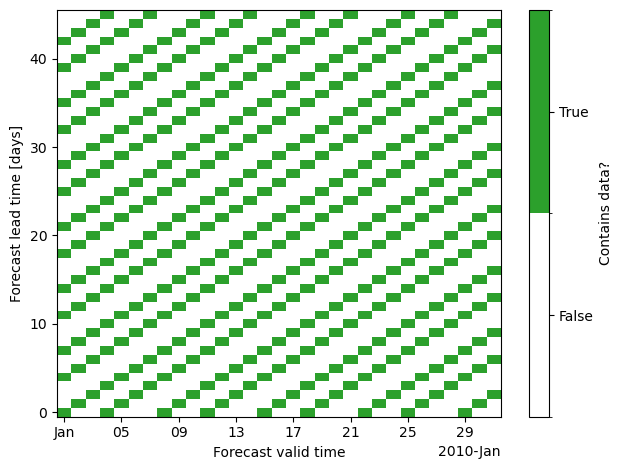

_images/2b5e3b501c695a60ca7cdaa96353a63831c29a6ebf3b57fb9c7953f9807b4eec.png

The reason is that forecasts aren’t initialized on all days, instead the dataset has gaps between initializations.

The strategy we’re implementing instead (in the merge_restructure_ds rule) instead uses valid_time as one of the dimensions and introduces a new dimension sample that we populate with all forecasts for the same valid_time, i.e. all cells that do contain data along each vertical line in the plot above. We compute a look-up table to extract lead_time and init_time from valid_time and sample.

Repeating the plot above with the new dataset and dimensions (valid_time, sample), we see that we can represent the data much more compactly.

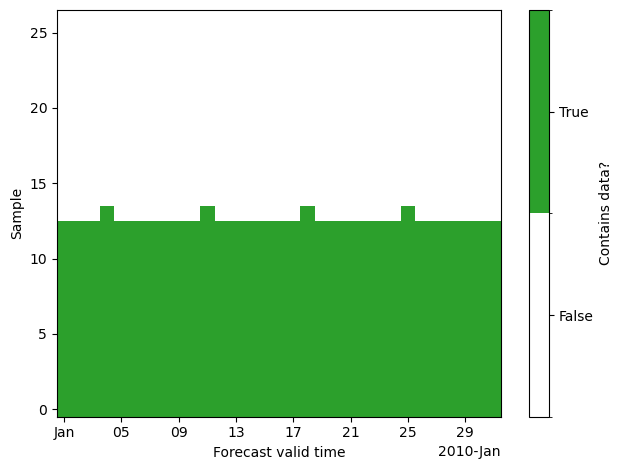

_images/d22461c18e0b6bb60756ba2938782efe7c6856a6b93f1a5113a62803b376de32.png

The size of the sample dimension is chosen as the maximum number of states with same valid_time. This is already smaller than the lead_time dimension:

print("Length lead_time dimension:", len(ds_combined.lead_time))
print("Length sample dimension:", len(ds_restructured.sample))

Length lead_time dimension: 46
Length sample dimension: 27

In our dataset, everything larger than sample == 13 contains almost exclusively missing data. Therefore, we usually restrict the data to samples 0 to 13 by setting n_samples: 14 in the corresponding configuration file. This is especially important as the computational demand for precomputing similarities scales quadratically with the number of included states.

Splitting valid time dimension into year and dayofyear

What we want to compute is similarities between states with a similar day of year of valid_time, not with a similar valid_time itself.

The next step (rule to_year_dayofyear_format) therefore consists of splitting the valid_timedimension into two separate dimensions year and dayofyear. We chunk the dataset along the dayofyear dimension to allow memory-efficient computations:

xr.open_zarr(path_dayofyear_year)["geopotential_height"].drop_attrs()

<xarray.DataArray 'geopotential_height' (dayofyear: 366, year: 21, sample: 27,
                                         ensemble_member: 11, lag: 1,
                                         latitude: 18, longitude: 49)> Size: 16GB
dask.array<open_dataset-geopotential_height, shape=(366, 21, 27, 11, 1, 18, 49), dtype=float64, chunksize=(1, 21, 27, 11, 1, 18, 49), chunktype=numpy.ndarray>
Coordinates:
  * dayofyear        (dayofyear) int64 3kB 1 2 3 4 5 6 ... 362 363 364 365 366
  * year             (year) int64 168B 2003 2004 2005 2006 ... 2021 2022 2023
  * sample           (sample) int64 216B 0 1 2 3 4 5 6 ... 20 21 22 23 24 25 26
  * ensemble_member  (ensemble_member) int64 88B 0 1 2 3 4 5 6 7 8 9 10
  * lag              (lag) timedelta64[ns] 8B 00:00:00
  * latitude         (latitude) float64 144B 30.0 32.5 35.0 ... 67.5 70.0 72.5
  * longitude        (longitude) float64 392B -80.0 -77.5 -75.0 ... 37.5 40.0
